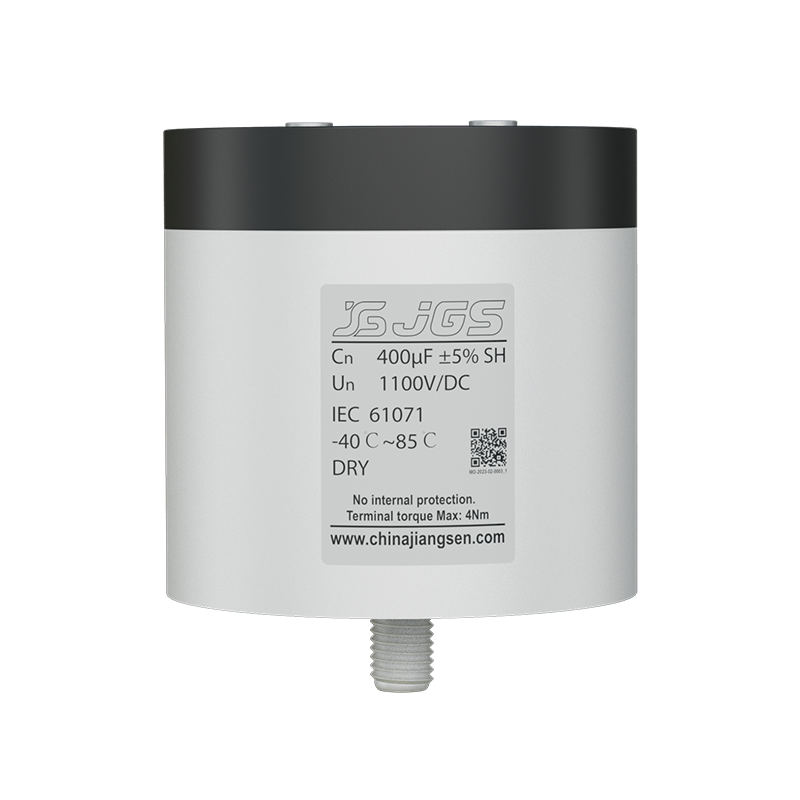

DC Link Capacitor With Aluminum Case

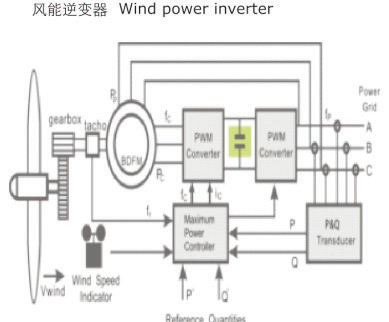

  • Smooth filtering of "DC link" of solar/wind energy inverter.
  • Smooth filtering of bus voltage of inverter power supply, UPS power supply and high power switching power supply.
  • Smooth filtering of power inverter, inverter welding machine and other power electronic equipment.
Contact Us
  • DC Link Capacitor With Aluminum Case
  • DC Link Capacitor With Aluminum Case
  • DC Link Capacitor With Aluminum Case
  • DC Link Capacitor With Aluminum Case
  • DC Link Capacitor With Aluminum Case
  • DC Link Capacitor With Aluminum Case
  • DC Link Capacitor With Aluminum Case
PREV：DC Link Capacitor With Plastic Case
NEXT：No next article

Features

-Standardized Internal Structure: Designed with a custom-made internal structure, ensuring reliable internal connections and lower ESR (Equivalent Series Resistance) for enhanced performance.

-Enhanced Terminal Strength: Terminals are engineered to endure higher torque forces, making them robust and secure even under high-stress applications.

-Precision Manufacturing: Utilizing a special mold during production to ensure the accuracy of terminal dimensions, guaranteeing smooth first-time mounting, especially when multiple products are connected in parallel.

-Optimized for Parallel Connections: This DC-Link is ideal for parallel configurations, providing consistent performance and seamless integration, even when scaling for larger systems.

Specifications

Reference standard: GB/T 17702 idt IEC 61071,GB/T 2693 idt IEC 60384-1;
Special metallized polypropylene film wound, noninductive construction. The element of capacitor is sealed with high performance flame-retardant epoxy resin in aluminum case.
To adopt technology patent with self-owned intellectual property right approved by our country to manufacture products.
Very low ESR, withstanding very high effective value of current Irms and peak to peak value of current lpp.
Withstanding higher non-periodic peak to peak voltage Us.
To replace electrolytic capacitor in smoothly filtering circuit so as to offer reliable assuranc.

Additional remark of dimensions：

D=76mm P=32mm;H3=16mm D1=14mm;D2=17.5mm
D1=12mm;D2=14mm
D=86mm P=32mm;H3=16mm D1=14mm;D2=17.5mm
D1=12mm;D2=15.5mm
D=100mm P=50mm;D1=16mm;D2=19.5mm;H3=26mm
D=116mm

Data Parameters

Climatic Category 40/85/56
Temperature Range -40～85℃(θhs)
Storage temperature Range -40～ 85℃
Rated Voltage Un 600Vdc~3000Vde
Capacitance Range 45μF~3000μF
Capacitance Tolerance△C/C J: ±5%   K: ±10%
Voltage Proof Between Terminals UTT 1.5Un(10s,20℃±5℃)
Voltage Proof Between Terminals And Case UTC   Un<1500Vde,3000Vac(10s,50Hz,20℃±5℃)
Un≥1500Vde,( √2Un+1000)Vac(10s,50Hz,20℃±5℃)
tagδ0 2×10¹
IR×Cn ≥5000S(20℃,500Vdc,1min)
Over Voltage 1.1Un(30%of on-load-dur)
1.15Un(30min/day)
1.2Un(5min/day)
1.3Un(1min/day)
1.5Un(30ms every time,1000times during the life of the capacitor )
Max.Altitude 2000m
Max.Torque of terminals M6: 5N□m
 M8: 6N□m
Max.Torque of installation 10N□m
Installation Any Position
Expected Lifetime 100000h@Un θhs=70℃
Failure Rate 50FIT



Typical Circuits Applications:


Un
(Vdc)		 Cn
(μF)		 ESR
1kHz
(mΩ)		 Ls
(nH)		 Rth
(K/W)		 I(A) Imax(A) Dimension(mm) Part number
40℃ 50℃ 60℃ ΦD H H1
600 480 1.5 45 5.6 1560 70 65 55 76 95 101 30A601D487***3095*
650 1.9 50 4.7 1560 70 63 53 76 120 126 30A601D657***3120*
780 2.2 55 4.6 1550 67 59 50 76 140 146 30A601D787***3140*
820 1.5 40 4.3 3060 70 70 62 76 155 161 30A601D827***3155*
950 1.5 45 4.2 3090 70 70 63 76 174 180 30A601D957***3174*
650 1.2 45 5.1 2120 70 70 64 86 95 101 30A601D657***5095*
880 1.5 50 4.7 2110 70 70 60 86 120 126 30A601D887***5120*
1000 1.8 55 4.6 2070 70 65 55 86 136 142 30A601D108***5136*
1100 1.7 55 4.6 2180 70 67 57 86 140 146 30A601D118***5140*
1100 1.4 45 4.4 4110 70 70 64 S6 155 161 30A601D118***5155*
1300 1.4 45 4.3 4230 70 70 64 86 174 180 30A601D138***5174*
2000 1.1 55 3 6510 70 70 70 86 252 258 30A601D208***5252*
900 1.3 45 4.7 2900 70 70 58 100 95 100 30A601D907***7095*
1200 1.4 50 4.1 2850 70 70 58 100 120 125 30A601D128***7120*
1400 1.5 55 3.9 2870 70 70 58 100 136 141 30A601D148***7136*
1500 1.6 55 3.8 2740 70 70 58 100 140 145 30A601D158***7140*
1600 1 40 3.5 5920 70 70 70 100 155 160 30A601D168***7155*
1800 1 45 3.2 5800 70 70 70 100 174 179 30A601D188***7174*
1200 0.7 45 5.4 3900 80 80 80 116 95 100 30A601D128***8095*
1600 1 50 5 3880 80 80 70 116 120 125 30A601D168***8120*
2000 1.1 55 4.9 3960 80 80 67 116 140 145 30A601D208***8140*
2100 0.8 40 3.6 7840 100 100 92 116 158 163 30A601D218***8158*
2400 0.9 45 3.4 7810 100 100 90 116 174 179 30A601D248***8174*
3000 0.8 50 2.7 11200 100 100 100 116 230 235 30A601D308***8235*
700 360 1.6 45 5.6 1560 70 63 53 76 95 101 30A701D367***3095*
480 2.1 50 4.7 1530 68 60 50 76 120 126 30A701D487***3120*
580 2.4 55 4.6 1530 64 56 48 76 140 146 30A701D587***3140*
620 1.5 40 4.3 3090 70 70 62 76 155 161 30A701D627***3155*
720 1.6 45 4.2 3120 70 70 61 76 174 180 30A701D727***3174*
480 1.3 45 5.1 2080 70 70 61 86 95 101 30A701D487***5095*
650 1.7 50 4.7 2080 70 66 56 86 120 126 30A701D657***5120*
750 2 55 4.6 2070 70 62 52 86 136 142 30A701D757***5136*
780 1.9 55 4.6 2060 70 63 53 86 140 146 30A701D787***5140*
820 1.4 40 4.4 4080 70 70 64 S6 155 161 30A701D827***5155*
950 1.5 45 4.3 4120 70 70 62 86 174 180 30A701D957***5174*
1500 1.1 55 3 6500 70 70 70 86 252 258 30A701D158***5252*
650 1.4 45 4.7 2710 70 69 56 100 95 100 30A701D657***7095*
900 1.5 50 4.1 2760 70 69 56 100 120 125 30A701D907***7120*
1000 1.7 55 3.9 2650 70 67 55 100 136 141 30A701D108***7136*
1100 1.7 55 3.8 2790 70 68 56 100 140 145 30A701D118***7140*
1100 1 40 3.5 5260 70 70 70 100 155 160 30A701D118***7155*
1300 1.1 45 3.2 5420 70 70 70 100 174 179 30A701D138***7174*
920 0.7 45 5.4 3990 80 80 80 116 95 100 30A701D927***8095*
1200 1 50 5 3880 80 80 70 116 120 125 30A701D128***8120*
1500 1.1 55 4.9 3950 80 80 68 116 140 145 30A701D158***8140*
1500 0.8 40 3.6 7460 100 100 93 116 158 163 30A701D158***8158*
1800 1 45 3.4 7800 100 100 85 116 174 179 30A701D188***8174*
2300 0.8 50 2.7 11440 100 100 100 116 230 235 30A701D238***8230*
800 290 1.7 45 5.6 1530 69 61 51 76 95 101 30A801D297***3095*
400 2.2 50 4.7 1530 66 58 49 76 120 126 30A801D407***3120*
480 2.5 55 4.6 1560 63 55 47 76 140 146 30A801D487***3140*
480 1.6 40 4.3 1540 70 70 60 76 155 161 30A801D487***3155*
560 1.7 45 4.2 2910 70 70 59 76 174 180 30A801D567***3174*
380 1.4 45 5.1 2960 70 70 59 86 95 101 30A801D387***5095*
520 1.8 50 4.7 2010 70 64 54 86 120 126 30A801D527***5120*
580 2 55 4.6 2020 70 62 52 86 136 142 30A801D587***5136*
630 2.1 55 4.6 1950 68 60 51 86 140 146 30A801D637***5140*
650 1.5 40 4.4 2030 70 70 62 S6 155 161 30A801D657***5155*
750 1.6 45 4.3 3940 70 70 60 86 174 180 30A801D757***5174*
1100 1.2 55 3 3960 70 70 70 86 252 258 30A801D118***5252*
500 1.4 45 4.7 2620 70 67 55 100 95 100 30A801D507***7095*
700 1.6 50 4.1 2700 70 67 55 100 120 125 30A801D707***7120*
800 1.8 55 3.9 2660 70 66 54 100 136 141 30A801D807***7136*
850 1.8 55 3.8 2700 70 66 54 100 140 145 30A801D857***7140*
900 1.1 40 3.5 5400 70 70 70 100 155 160 30A801D907***7155*
1000 1.1 45 3.2 5230 70 70 70 100 174 179 30A801D108***7174*
720 0.9 45 5.4 3800 80 80 71 116 95 100 30A801D727***8095*
980 1.2 50 5 3810 80 76 64 116 120 125 30A801D987***8120*
1200 1.4 55 4.9 3860 80 71 60 116 140 145 30A801D128***8140*
1200 0.9 40 3.6 7280 100 100 87 116 158 163 30A801D128***8158*
1500 1.1 45 3.4 7920 100 96 81 116 174 179 30A801D158***8174*
1800 0.8 50 2.7 10910 100 100 100 116 230 235 30A801D188***8230*
900 290 2 45 5.6 1530 63 56 47 76 95 101 30A901D297***3095*
400 2.6 50 4.7 1560 61 54 45 76 120 126 30A901D407***3120*
480 2.9 55 4.6 1540 58 51 43 76 140 146 30A901D487***3140*
480 1.7 40 4.3 2910 70 69 58 76 155 161 30A901D487***3155*
560 1.8 45 4.2 2960 70 68 58 76 174 180 30A901D567***3174*
380 1.6 45 5.1 2010 70 65 55 86 95 101 30A901D387***5095*
520 2.1 50 4.7 2020 68 60 50 86 120 126 30A901D527***5120*
580 2.2 55 4.6 1950 67 59 50 86 136 142 30A901D587***5136*
630 2.4 55 4.6 2030 64 56 48 86 140 146 30A901D637***5140*
650 1.5 40 4.4 3940 70 70 62 S6 155 161 30A901D657***5155*
750 1.6 45 4.3 3960 70 70 60 86 174 180 30A901D757***5174*
1100 1.3 55 3 5810 70 70 70 86 252 258 30A901D118***5252*
500 1.4 45 4.7 2620 70 67 55 100 95 100 30A901D507***7095*
700 1.6 50 4.1 2700 70 67 55 100 120 125 30A901D707***7120*
800 1.8 55 3.9 2660 70 66 54 100 136 141 30A901D807***7136*
850 1.8 55 3.8 2700 70 66 54 100 140 145 30A901D857***7140*
900 1.1 40 3.5 5400 70 70 70 100 155 160 30A901D907***7155*
1000 1.1 45 3.2 5230 70 70 70 100 174 179 30A901D108***7174*
720 0.9 45 5.4 3800 80 80 71 116 95 100 30A901D727***8095*
980 1.2 50 5 3810 80 76 64 116 120 125 30A901D987***8120*
1200 1.4 55 4.9 3860 80 71 60 116 140 145 30A901D128***8140*
1200 0.9 40 3.6 7280 100 100 87 116 158 163 30A901D128***8158*
1500 1.1 45 3.4 7920 100 96 81 116 174 179 30A901D158***8174*
1800 0.8 50 2.7 10910 100 100 100 116 230 235 30A901D188***8230*
1000 220 2.2 45 5.6 1460 60 53 45 76 95 101 30A102D227***3095*
300 2.9 50 4.7 1460 57 51 43 76 120 126 30A102D307***3120*
360 3.3 55 4.6 1450 54 48 41 76 140 146 30A102D367***3140*
360 1.9 40 4.3 2740 70 65 55 76 155 161 30A102D367***3155*
420 2 45 4.2 2780 70 65 55 76 174 180 30A102D427***3174*
290 1.8 45 5.1 1920 70 62 52 86 95 101 30A102D297***5095*
400 2.3 50 4.7 1950 65 57 48 86 120 126 30A102D407***5120*
470 2.2 55 4.6 1980 67 59 50 86 136 142 30A102D477***5136*
480 2.6 55 4.6 1930 61 54 46 86 140 146 30A102D487***5140*
500 1.6 40 4.4 3800 70 70 60 S6 155 161 30A102D507***5155*
560 1.7 45 4.3 3710 70 69 58 86 174 180 30A102D567***5174*
900 1.3 55 3 5960 70 70 70 86 252 258 30A102D907***5252*
380 1.5 45 4.7 2490 70 65 53 100 95 100 30A102D387***7095*
500 1.8 50 4.1 2410 70 64 52 100 120 125 30A102D507***7120*
600 1.9 55 3.9 2500 70 63 52 100 136 141 30A102D607***7136*
650 1.9 55 3.8 2590 70 64 52 100 140 145 30A102D657***7140*
650 1.1 40 3.5 4890 70 70 70 100 155 160 30A102D657***7155*
780 1.1 45 3.2 5110 70 70 70 100 174 179 30A102D787***7174*
540 1 45 5.4 3570 80 80 68 116 95 100 30A102D547***8095*
740 1.4 50 5 3610 80 70 59 116 120 125 30A102D747***8120*
900 1.5 55 4.9 3620 78 69 58 116 140 145 30A102D907***8140*
900 0.95 40 3.6 6840 100 100 85 116 158 163 30A102D907***8158*
1100 1.2 45 3.4 7280 100 92 78 116 174 179 30A102D118***8174*
1400 0.9 50 2.7 10630 100 100 100 116 230 235 30A102D148***8230*
1100 180 2.8 45 5.6 1400 59 52 44 76 95 101 30A112D187***3095*
250 3 50 4.7 1430 56 50 42 76 120 126 30A112D257***3120*
300 3.5 55 4.6 1420 53 47 39 76 140 146 30A112D307***3140*
310 1.9 40 4.3 2770 70 65 55 76 155 161 30A112D317***3155*
360 2 45 4.2 2800 70 65 55 76 174 180 30A112D367***3174*
240 1.9 45 5.1 1870 68 60 51 86 95 101 30A112D247***5095*
330 2.4 50 4.7 1890 63 56 47 86 120 126 30A112D337***5120*
420 2.3 55 4.6 2080 65 58 49 86 136 142 30A112D427***5136*
420 1.7 40 4.4 3750 70 63 52 86 155 161 30A112D427***5155*
500 1.8 45 4.3 3730 70 67 57 86 174 180 30A112D507***5174*
750 1.3 55 3 5840 70 70 70 86 252 258 30A112D757***5252*
350 1.5 45 4.7 2640 70 65 53 100 95 100 30A112D357***7095*
450 1.8 50 4.1 2500 70 63 51 100 120 125 30A112D457***7120*
520 2 55 3.9 2500 70 62 50 100 136 141 30A112D527***7136*
550 2.1 55 3.8 2520 70 62 51 100 140 145 30A112D557***7140*
580 1.1 40 3.5 5020 70 70 70 100 155 160 30A112D587***7155*
650 1.2 45 3.2 4900 70 70 70 100 174 179 30A112D657***7174*
450 1 45 5.4 3500 80 80 68 116 95 100 30A112D457***8095*
620 1.4 50 5 3550 80 70 59 116 120 125 30A112D627***8120*
750 1.6 55 4.9 3550 75 66 56 116 140 145 30A112D757***8140*
780 0.9 40 3.6 6960 100 100 85 116 158 163 30A112D787***8158*
920 1.1 45 3.4 7150 100 96 81 116 174 179 30A112D927***8174*
1200 0.9 50 2.7 10710 100 100 100 116 230 235 30A112D128***8230*
1200 140 2.7 45 5.6 1330 55 48 41 76 95 101 30A122D147***3095*
200 3.4 50 4.7 1400 53 47 40 76 120 126 30A122D207***3120*
240 3.9 55 4.6 1380 50 44 37 76 140 146 30A122D247***3140*
240 2 40 4.3 2630 70 64 54 76 155 161 30A122D247***3155*
280 2.1 45 4.2 2670 70 63 53 76 174 180 30A122D287***3174*
190 2.1 45 5.1 1810 65 57 48 86 95 101 30A122D197***5095*
260 2.7 50 4.7 1810 60 53 44 86 120 126 30A122D267***5120*
320 2.5 55 4.6 1930 63 55 47 86 136 142 30A122D327***5136*
330 3 55 4.6 1900 57 50 43 86 140 146 30A122D337***5140*
330 1.8 40 4.4 3610 70 66 56 86 155 161 30A122D337***5155*
380 1.9 45 4.3 3610 70 65 55 86 174 180 30A122D387***5174*
580 1.5 55 3 5520 70 70 70 86 252 258 30A122D587***5252*
250 1.7 45 4.7 2320 70 61 50 100 95 100 30A122D257***7095*
350 2 50 4.1 2390 70 61 50 100 120 125 30A122D357***7120*
400 2.2 55 3.9 2360 69 59 49 100 136 141 30A122D407***7136*
420 2.2 55 3.8 2370 69 59 49 100 140 145 30A122D427***7140*
450 1.2 40 3.5 4790 70 70 70 100 155 160 30A122D457***7155*
500 1.2 45 3.2 4640 70 70 70 100 174 179 30A122D507***7174*
360 1.1 45 5.4 3420 80 76 64 116 95 100 30A122D367***8095*
500 1.6 50 5 3490 75 66 55 116 120 125 30A122D507***8120*
600 1.8 55 4.9 3450 71 63 53 116 140 145 30A122D607***8140*
620 1 40 3.6 6780 100 98 83 116 158 163 30A122D627***8158*
720 1.2 45 3.4 6740 100 92 78 116 174 179 30A122D727***8174*
950 0.9 50 2.7 10210 100 100 100 116 230 235 30A122D957***8230*
90 3.3 45 5.6 1220 49 44 37 76 95 101 30A152D906***3095*
120 4.4 50 4.7 1200 47 41 35 76 120 126 30A152D127***3120*
150 4.9 55 4.6 1230 45 39 33 76 140 146 30A152D157***3140*
150 2.4 40 4.3 2340 66 58 49 76 155 161 30A152D157***3155*
170 2.5 45 45 2310 65 58 49 76 174 180 30A152D177***3174*
120 2.6 45 5.1 1630 58 51 43 86 95 101 30A152D127***5095*
170 3.3 50 4.7 1690 54 48 40 86 120 126 30A152D177***5120*
200 3 55 4.6 1720 57 50 43 86 136 142 30A152D207***5136*
210 2 40 4.4 3280 70 63 53 86 155 161 30A152D217***5155*
240 2.1 45 4.3 3260 70 62 53 86 174 180 30A152D247***5174*
380 1.5 55 3 5080 70 70 70 86 252 258 30A152D387***5252*
160 1.9 45 4.7 2150 67 58 47 100 95 100 30A152D167***7095*
210 2.3 50 4.1 2080 65 56 46 100 120 125 30A152D217***7120*
250 2.5 55 3.9 2140 64 55 45 100 136 141 30A152D257***7136*
280 1.3 40 3.5 4320 70 70 67 100 155 160 30A152D287***7155*
320 1.3 45 3.2 4300 70 70 68 100 174 179 30A152D327***7174*
230 1.4 45 5.4 3120 77 68 57 116 95 100 30A152D237***8095*
320 1.9 50 5 3180 68 60 51 116 120 125 30A152D327***8120*
390 2.1 55 4.9 3200 66 58 49 116 140 145 30A152D397***8140*
420 1.1 40 3.6 6550 100 94 79 116 158 163 30A152D427***8158*
470 1.3 45 3.4 6280 89 79 66 116 174 179 30A152D477***8174*
600 1 50 2.7 9200 100 89 75 116 230 235 30A152D607***8230*
2000 110 3.5 65 4.5 1830 48 42 35 86 140 146 30A202D117***5140*
180 1.8 60 3.2 3660 78 69 58 86 225 231 30A202D187***5225*
180 2.1 60 3.5 3660 70 61 52 116 120 125 30A202D187***8120*
220 2.3 65 3.3 3660 69 60 51 116 140 145 30A202D227***8140*
260 1.1 55 2.9 7360 100 93 79 116 174 179 30A202D267***8174*
360 1.3 60 2.4 7330 100 93 79 116 225 230 30A202D367***8225*
2200 90 3.7 65 4.5 1790 46 41 34 86 140 146 30A222D906***5140*
150 1.9 60 3.2 3670 77 68 57 86 225 231 30A222D157***5225*
140 2.2 60 3.6 3420 67 59 50 116 120 125 30A222D147***8120*
170 2.5 65 3.3 3390 66 58 49 116 140 145 30A222D177***8140*
210 1.1 55 2.9 7150 100 91 77 116 174 179 30A222D217***8174*
290 1.4 60 2.4 7100 100 91 77 116 225 230 30A222D297***8225*
2600 63 4.1 65 4.5 1730 43 38 32 86 140 146 30A262D636***5140*
100 2.1 60 3.2 3370 72 63 53 86 225 231 30A262D107***5225*
100 2.4 60 3.6 3370 64 57 48 116 120 125 30A262D107***8120*
120 2.7 65 3.3 3310 63 55 47 116 140 145 30A262D127***8140*
140 1.2 55 2.9 6570 98 87 73 116 174 179 30A262D147***8174*
200 1.5 60 2.5 6750 99 87 73 116 225 230 30A262D207***8225*
2800 54 4.3 65 4.5 1710 42 37 32 86 140 146 30A282D546***5140*
88 2.2 60 3.2 3430 71 62 53 86 225 231 30A282D886***5225*
86 2.5 60 3.6 3350 63 56 47 116 120 125 30A282D866***8120*
100 2.9 65 3.4 3180 61 53 45 116 140 145 30A282D107***8140*
120 1.3 55 2.9 6500 97 85 72 116 174 179 30A282D127***8174*
170 1.5 60 2.5 6620 96 85 72 116 225 230 30A282D177***8225*
3000 46 4.6 65 4.6 1570 41 36 30 86 140 146 30A302D466***5140*
75 2.3 60 3.2 3150 69 61 51 86 225 231 30A302D756***5225*
74 2.6 60 3.6 3110 62 54 46 116 120 125 30A302D746***8120*
90 2.9 65 3.3 3000 60 53 45 116 140 145 30A302D906***8140*
100 1.3 55 3 5840 94 83 70 116 174 179 30A302D107***8174*
140 1.6 60 2.5 5880 93 82 69 116 225 230 30A302D147***8225*

Products

Message Feedback
About
Nantong Jiangsen Electronic Technology Co., Ltd.
Nantong Jiangsen Electronic Technology Co., Ltd.
Jiangsen Electronic Technology Co., Ltd. is located in a historical and cultural city of Jiangsu Province Rugao. The Hui-style "Shuihui Garden" tops in gardens and can be found nowhere else. As the hometown to "flowers and plants", the traditional bonsai wins appraise from home and abroad. Moreover, Rugao enjoys the reputation of being the city of longevity. Nantong Jiangsen Electronic Technology Co., Ltd., a dazzling pearl, is sparkling on this ancient and magic land.

Our company covers an area of 78 acres with a construction area of 50,000 square meters. The first phase investment amounts to 160 million RMB and the registered capital is 60 million RMB. Wholesale OEM DC Link Capacitor With Aluminum Case Manufacturers and China Custom OEM DC Link Capacitor With Aluminum Case Factory. With an integration of manufacturing, designing and sales, our company has high automation in metalized films and film capacitors of all series and pitches.
News
