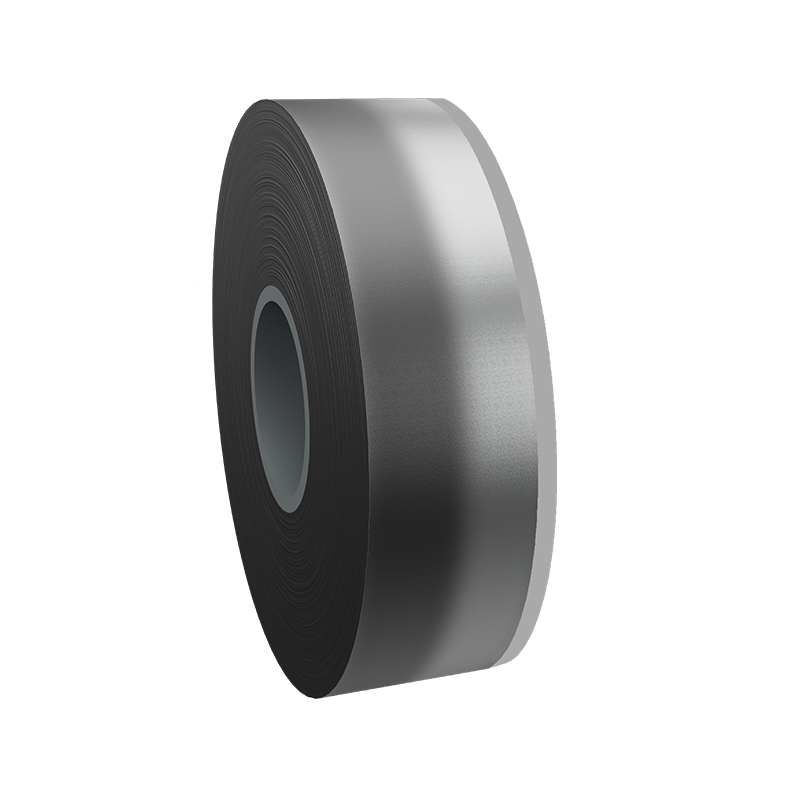

Single Margin Al or Zn-Al MPET Film With Heavy Edge

Introducing our high-performance Single Margin Al or Zn-Al MPET Film With Heavy Edge, a cutting-edge solution crafted to enhance your diverse applications.
Constructed from premium polyester film with a normal thickness ranging from 1.9μm to 12.0μm, this product guarantees flexibility and durability to meet the stringent demands of your projects.
Featuring a single-margin design and coated with either aluminum or Zinc-Aluminum alloy on a single side, our film ensures conductivity and stability, vital for performance in various applications.
The heavy edge structure adds a layer of durability, facilitating seamless integration into your projects. Whether in electronics, packaging, or other industries, our film is designed to deliver reliable results.
Experience unparalleled performance and reliability with our Single Margin Al or Zn-Al MPET Film With Heavy Edge, setting new standards in the industry. Contact us today to explore how this advanced film solution can elevate your applications.
Contact Us
  • Single Margin Al or Zn-Al MPET Film With Heavy Edge
PREV：Double Side Metallised Al Pet Film Center Margin
NEXT：No next article

Features

Specifications

Base film Polyester film
Normal thickness 1.9μm ~12.0μm
Margin type Single
Coating metal Aluminum or Zinc-Aluminum alloy
Coating side Single
Edge structure Heavy edge


Square resistance: Normal film Width and Margin

Width(mm) Margin(mm) Width(mm) Margin(mm) Width(mm) Margin(mm)
7 0.5/1/1.5 37.5 1.5/2 70 1.5/2/2.5
9 0.8/1/1.5 40 1.5/2 75 1.5/2/2.5
10 1.0/1.5 42.5 1.5/2 80 2.5
14 0.8/1/1.5 43 2 85 2.5
19 0.8/1/1.5 45 1.5/2 90 2.0/2.5
21 0.8/1/1.5 50 1.5/2/2.5 95 2.5
25 1/1.5/2 55 1.5/2/2.5 100 2.0/2.5
26 1/1.5/2 60 1.5/2/2.5 120 2.5
30 1/1.5/2 62.5 1.5/2/2.5 110 2
35 1.5/2 65 1.5/2/2.5 125 2.0/2.5

Reinforced resistance Normal resistance
(1～4)Ω/ohms (4～6)Ω/ohms
(1～4)Ω/ohms (6～10)Ω/ohms
(1～4)Ω/ohms (10～15)Ω/ohms
(1～4)Ω/ohms (15～22)Ω/ohms



Inside/outside core diameter：

Inside core diameter/Tolerance Outside core diameter/Tolerance
75mm +1/-0.5mm 175 ±25mm
220 ±20mm
280 ±20mm
320 ±20mm

Data Parameters

Properties Unit Typical value
Density g/cm3 1.4
Thickness µm ＜5 5～12 ≥12
Tensile Strength MD (MPa) ≥84 ≥108 ≥120
Elongation at Break MD (%) ≥22 ≥33 ≥44
Elastic Modulus MD (MPa) 3500
Break-down Voltage V/µm ≥200 ≥250
( 23°C, DC ) ( 23°C, DC )
Heat Shrinkage MD (%) ≤2.5 ( 150°C, 10min)
Surface Roughness µm 0.095
Melting Point ℃ 256
Volume Resistivity Ω.m ＞1015
( 23°C, Humidity 50%)
Dielectric Constant 3.2
(20℃，1KHz)
Dissipation Factor - ≤60×10-4
(20℃，1KHz )
RC ΩF ≥1×104
