Al MPP Film With Center Margin

Introducing our cutting-edge Al MPP Film With Center Margin, meticulously engineered to elevate your capacitor applications to new heights.
Crafted from premium polypropylene film with a normal thickness ranging from 2.0μm to 12.0μm, this product offers flexibility and durability to meet a variety of electrical requirements.
Featuring a unique center margin type and coated with aluminum on a single or double side, our film ensures conductivity and stability, essential for reliable capacitor functionality.
With a focus on precision, the edge structure is designed with no heavy edge, ensuring ease of handling and seamless integration into capacitor assemblies.
Experience performance and reliability with our Al MPP Film With Center Margin, designed to meet demanding industry standards. Contact us today to learn more about how this advanced film solution can enhance your capacitor projects.
Contact Us
  • Al MPP Film With Center Margin
PREV：No previous article
NEXT：Al or ZnAl MPP Film Multiple Series MarginBase Film

Features

Specifications

Base film Polypropylene film
Normal thickness 2.0μm ~12.0μm

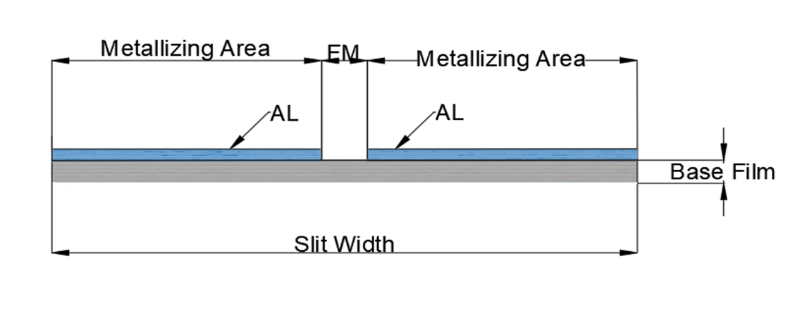

Margin type middle
Coating metal Aluminum
Coating side Single or double
Edge structure No Heavy edge

Square resistance: Normal film Width and Margin
Width(mm) Margin(mm) Width(mm) Margin(mm)
14 1.5 42 1.5/2.0
18 1.5 50 2.5
20 1.0/1.5 52 1.5/2.0
38 1.5 60 2.0/2.5

Square resistance Tolerance
1.5Ω/□ ±30%
2.0Ω/□ ±30%
2.5Ω/□ ±30%
3.0Ω/□ ±30%
3.5Ω/□ ±30%

Inside/outside core diameter：
Inside core diameter/Tolerance Outside core diameter/Tolerance
75mm +1/-0.5mm 175 ±25mm
220 ±20mm

Data Parameters

Properties Unit Typical value
Density g/cm3 0.905±0.005
Thickness µm 2.0 ～ 12
Tensile Strength MD (MPa) ≥100
Elongation at Break MD (%) 20～200
Elastic Modulus MD (MPa) 2800
Heat Shrinkage MD (%) ≤5 ( 120°C, 10min)
Wetting Tension mN/m 38 (Corona treated side)
Surface Roughness µm 0.08
Melting Point ℃ 172
Volume Resistivity Ω.m ＞1015
Break-dowm Voltage V/µm ≥350 ( 23°C, DC )
Dielectric Constant 2.2 (20℃，1KHz)
Dissipation Factor ≤4×10-4 (20℃，1KHz )
RC ΩF ≥5×104
