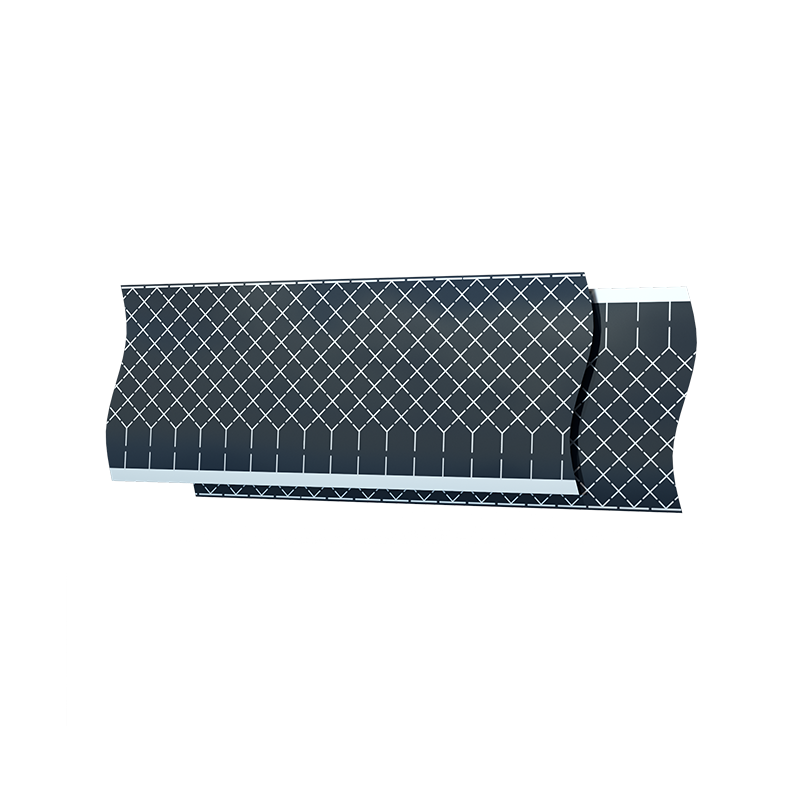

Segmented MPP Film With Diamond Pattern, T Pattern, 1/2 Pattern

Introducing our cutting-edge Segmented MPP Film with a variety of patterns including Diamond, T, and half T, designed to revolutionize your capacitor applications.
Crafted from premium polypropylene film with a normal thickness ranging from 2.0μm to 15.0μm, this product offers exceptional flexibility and durability to accommodate diverse electrical needs.
Featuring a single-margin design and coated with either aluminum or Zinc-Aluminum alloy on a single side, our film ensures conductivity and stability, essential for capacitor performance.
The unique edge structure, characterized by a heavy edge, enhances durability and facilitates seamless integration into capacitor assemblies, ensuring long-term reliability.
With the choice between straight line cutting or wave cutting for splitting methods, customization is effortless to match your specific project requirements.
Our Segmented MPP Film is available with base film resin options from both Borealis and Non-Borealis, providing versatility to meet various manufacturing preferences.
Experience unparalleled performance with our Segmented MPP Film, offering innovative patterns to elevate your capacitor projects. Contact us today to discover how this advanced film solution can enhance your applications.
Contact Us
  • Segmented MPP Film With Diamond Pattern, T Pattern, 1/2 Pattern
  • Segmented MPP Film With Diamond Pattern, T Pattern, 1/2 Pattern
  • Segmented MPP Film With Diamond Pattern, T Pattern, 1/2 Pattern
  • Segmented MPP Film With Diamond Pattern, T Pattern, 1/2 Pattern
PREV：Al MPP Film Both Side Margin
NEXT：Single Margin Zn-Al MPP Film With Ramp Resistance

Features

Specifications

Base film Polypropylene film
Normal thickness 2.0μm ~15.0μm
Margin type Single
Coating metal Aluminum or Zinc-Aluminum alloy
Coating side Single
Edge structure Heavy edge
Splitting method Straight line cutting or Wave cutting

Square resistance: Normal film Width and Margin
Diamond Pattern T-Pattern 1/2 T-Pattern
Width (mm) Width (mm) Width (mm) Width (mm)
25 60 25 25
30 75 30 35
35 85 37.5 45
37.5 90 40 50
40 100 55
45 120
50 150

Reinforced resistance Normal resistance
(2～4)Ω/□ (6～9)Ω/□
(2～4)Ω/□ (7～11)Ω/□
(2～4)Ω/□ (12～18)Ω/□
(2～4)Ω/□ (17～23)Ω/□
(1～5)Ω/□ (35～55)Ω/□
(1～5)Ω/□ (40～60)Ω/□

Inside/outside core diameter：
Inside core diameter/Tolerance Outside core diameter/Tolerance
75mm +1/-0.5mm 175 ±25mm
220 ±20mm
240 ±20mm
280 ±20mm
320 ±20mm

Data Parameters

Properties Unit Typical value
Density g/cm3 0.905±0.005
Thickness µm 2.0 ～ 12
Tensile Strength MD (MPa) ≥100
Elongation at Break MD (%) 20～200
Elastic Modulus MD (MPa) 2800
Heat Shrinkage MD (%) ≤5 ( 120°C, 10min)
Wetting Tension mN/m 38 (Corona treated side)
Surface Roughness µm 0.08
Melting Point ℃ 172
Volume Resistivity Ω.m ＞1015
Break-down Voltage V/µm ≥350 ( 23°C, DC )
Dielectric Constant 2.2 (20℃，1KHz)
Dissipation Factor ≤4×10-4 (20℃，1KHz )
RC ΩF ≥5×104
