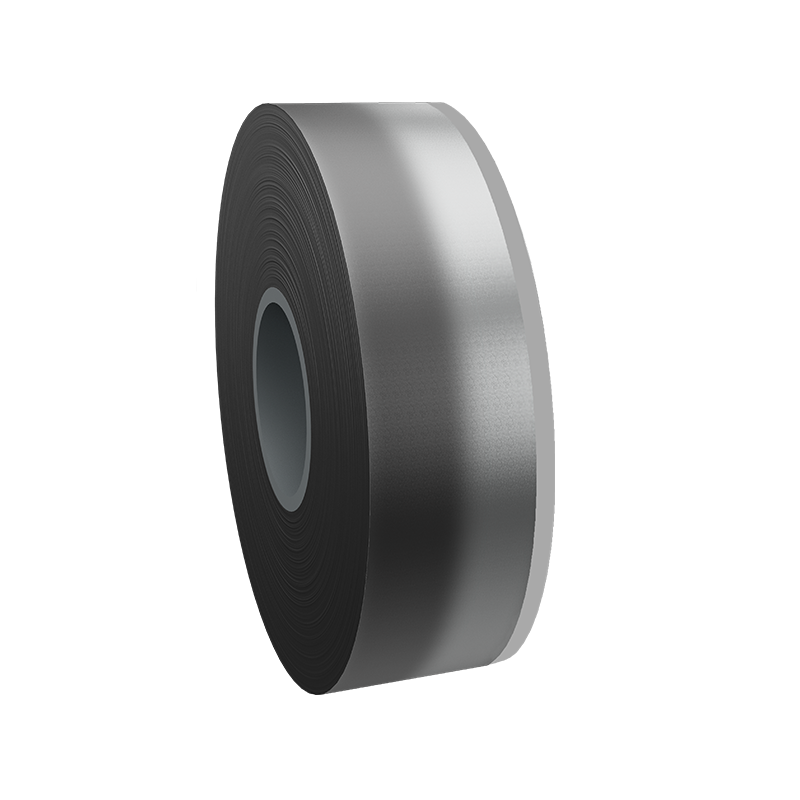

Single Margin Zinc Aluminium MPP Film With Heavy Edge

Introducing our Single Margin Zinc Aluminium MPP Film with Heavy Edge, a premium solution crafted for performance in capacitor applications. Made from high-quality polypropylene film, this product boasts a normal thickness range of 2.0μm to 15.0μm, ensuring reliability and versatility.
Featuring a single-margin design and coated with either aluminum or zinc-aluminum alloy on one side, our film offers exceptional conductivity and stability. The heavy edge structure enhances durability, making it ideal for seamless integration into capacitor designs.
Choose between straight-line cutting or wave cutting for splitting methods, allowing for precise customization to meet your specific requirements. This advanced film solution delivers unmatched electrical properties and longevity, ensuring reliable performance in diverse operating conditions.
Experience the benefits of our Single single-margin zinc Aluminium MPP Film with Heavy Edge for your capacitor projects. Contact us today to learn more about how this product can elevate your applications.
Contact Us
  • Single Margin Zinc Aluminium MPP Film With Heavy Edge
  • Single Margin Zinc Aluminium MPP Film With Heavy Edge
PREV：Single Margin Zn-Al MPP Film With Ramp Resistance
NEXT：Single Margin MPP Film With High Resistance

Features

Specifications

Base film Polypropylene film
Normal thickness 2.0μm ~15.0μm
Margin type Single
Coating metal Aluminum or Zinc-Aluminum alloy
Coating side Single
Edge structure Heavy edge
Splitting method Straight line cutting or Wave cutting


Square Resistance:

Reinforced resistance Normal resistance
(2～4)Ω/ohms (6～9)Ω/ohms
(1～3)Ω/ohms (4～6)Ω/ohms
(1～3)Ω/ohms (8～12)Ω/ohms
(1～3)Ω/ohms (12～20)Ω/ohms
(2～4)Ω/ohms (18～33)Ω/ohms
(2～4)Ω/ohms (20～40)Ω/ohms


Normal film Width and Margin:

Width (mm) Margin (mm) Width (mm) Margin (mm) Width (mm) Margin (mm)
7 0.5/1/1.5 37.5 1.5/2.0/2.5 70 2.5
9 0.8/1/1.5/2 40 1.5/2.0/2.5 75 1.5/2.0/2.5
10 1.1/1.5 42.5 1.5/2.0/2.5 80 2.5
14 1/1.5/2 43 2 85 2.5
19 0.8/1/1.5/2 45 1.5/2.0/2.5 90 2.0/2.5
21 1/1.5/2.0 50 1.5/2.0/2.5 95 2.5
25 1/1.5/2/2.5 55 1.5/2.0/2.5 100 2.0/2.5
26 0.8/1/1.5/2.0 60 1.5/2.0/2.5 115 2/2.5
30 1/1.52.0/2.5 62.5 2.5 120 2.5
35 1.5/2/2.5 65 2.5 150 2.5


Inside/Outside Core Diameter:

Inside core diameter/ Tolerance Outside core diameter/Tolerance
75mm +1/-0.5mm 180mm +-25mm
240mm +-20mm
280mm +-20mm
320mm +-20mm

Data Parameters

Properties Unit Typical value
Density g/cm3 0.905±0.005
Thickness µm 2.0 ～ 12
Tensile Strength MD (MPa) ≥100
Elongation at Break MD (%) 20～200
Elastic Modulus MD (MPa) 2800
Heat Shrinkage MD (%) ≤5 ( 120°C, 10min)
Wetting Tension mN/m 38  (Corona treated side)
Surface Roughness µm 0.08
Melting Point ℃ 172
Volume Resistivity Ω.m ＞1015
Break-down Voltage V/µm ≥350 ( 23°C, DC )
Dielectric Constant 2.2  (20℃，1KHz)
Dissipation Factor ≤4×10-4 (20℃，1KHz )
RC ΩF ≥5×104
